Specification
|
TeraScan 780
|
TeraScan 1550
|
|
Difference Frequency Tuning
|
1.8 THz (2.0 THz tp.)
|
1.2 THz (up to 2.7 THz with Tuning Range Extension)
|
|

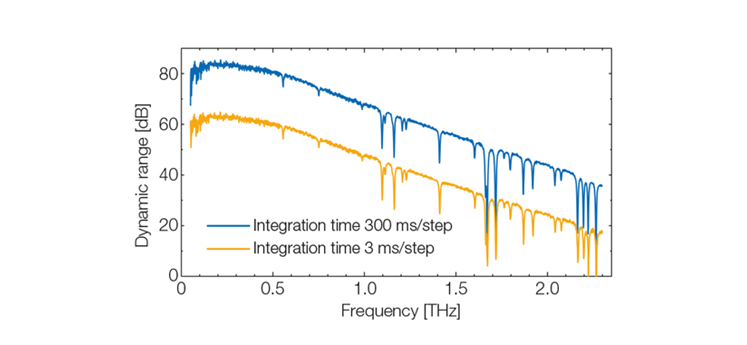

Terahertz dynamic range
|
|
(300 ms integration time)
|
|
|
80 dB @100 GHz
|
|
70 dB @500 GHz
|
|
|
90 dB @ 100 GHz
|
|
70 dB @500 GHz
|
|
|
Minimum frequency step size
|
<10 MHZ
|
|
Tuning Speed
|
Up to 100 GHz/sec
|
|
Frequency accuracy
|
<2GHz
|
|
Terahertz emitter
|
PCA-FD-0780-100-TX-,GaAs photomixer
|
PCA-FD-1550-100-TX-1,InGaAs photodiode
|
|
Terahertz receiver
|
PCA-FD-0780-130-RX-1,GaAs photomixer
|
PCA-FD-1550-130-RX-1,InGaAs photomixer
|
|
Antenna type
|
Log-spiral
|
Bow-tie
|
|
Terahertz polarization
|
Circular
|
Linear
|
|
Emitter and receiver package
|
Cylindrical,Ø 1",Integrated Si lens and SM/PM,fiber pigtai
|
Cylindrical,Ø 25 mm,Integrated Si lens and SM/PM,fiber pigta
|
|
Emitter and receiver bandwidth
|
Approx.3 THz
|
|
Terahertz power (typ.)
|
2 μW @ 100 GHz,0.3 μW @ 500 GH
|
100 μW @ 100 GHz,10 μW @ 500 GH
|
|

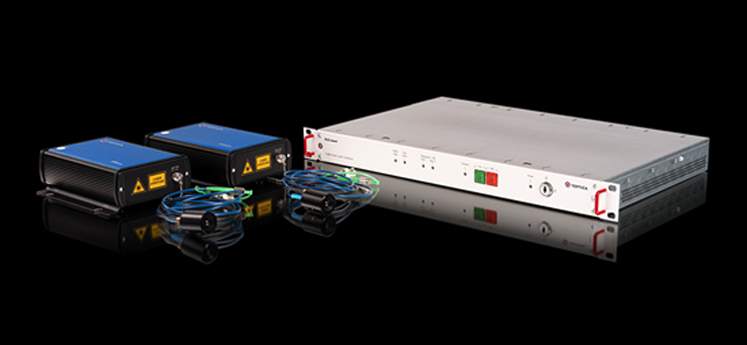

Laser size and weight
|
Two DFB pro L laser heads, each with dimensions 90 x 90 x 244 mm (H x W x D), 2.8 kg
|
Two DFB pro BFY laser heads, each with dimensions 60 x 120 x 165 mm (H x W x D), 1 kg
|
|
Control unit
|
DLC smart
|
|
Controller size (H x W x D) + weight
|
19" and 1 RU (H x W x D: 45 x 480 x 290 mm),4 kg
|
|
Computer interface
|
Ethernet
|
|
Software
|
Control software with GUl + Remote command interface
|
|
Key advantages
|
High bandwidth with one set of lasers
|
High terahertz power, compact laser unit
|
